AC Charger Pile Series for Electric Cars

Whatever Your Need, Newyea Has the Right electric vehicle charging pile for You
  • Item NO.:

    Newyea AC Charger Pi
  • Product Orgin:

    China
  • Shipping Port:

    China
  • Product Details

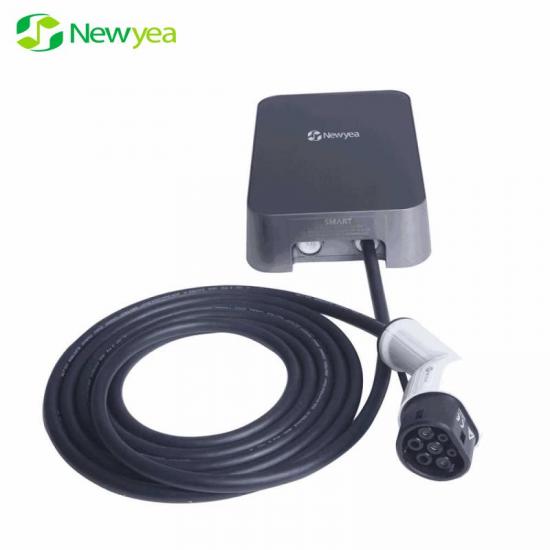

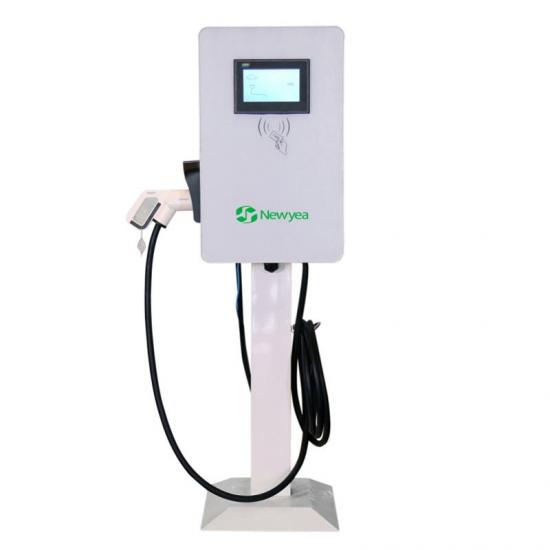

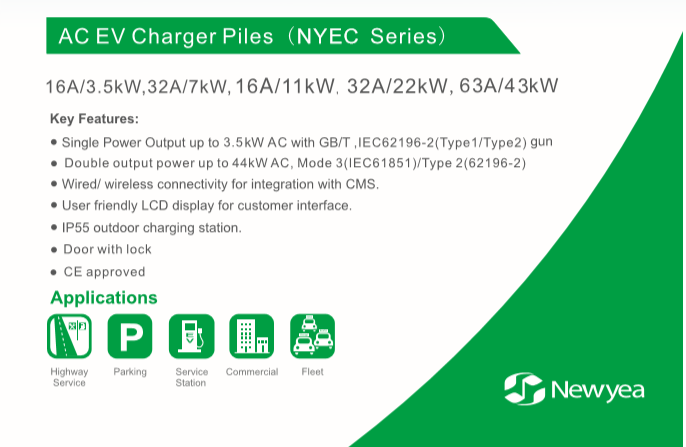

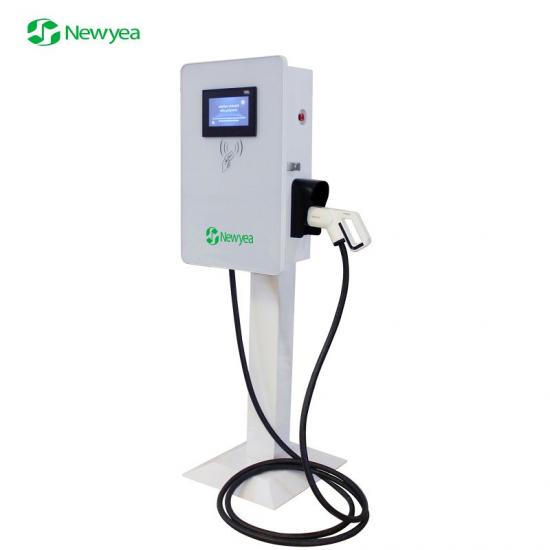

AC EV Charger Piles (NYEC Series)

16A/3.5KW, 32A/7KW,16A/11KW,32A/22KW,63A/43KW

Newyea AC electric car charging pile stations offer reliable, all-purpose charging for workplaces, multifamily residences and fleet depots. These solutions offer businesses and property owners the opportunity to generate new revenue while providing a necessary service for drivers.

key Features:

  • Single power output up to 3.5KW AC with GB/T, IEC62196-2(Type2), J1772(Type1) gun.
  • Double output power up to 44KW AC, Mode 3(IEC61851)/Type1(J1772)/Type1(IEC61851).
  • Wired/WirelEss connectivity for integration with CMS.
  • User friendly LCD display for customer interface.
  • IP55 outdoor charging station.

Application to:

  • Highway service
  • Parking
  • Service station
  • Commercial
  • Fleet

Product Specification

Specification

Model

NY7K(A)H011-230Y

AC Nominal Input

Phases/Lines

1 phase + netural+ PE

Voltage

230V±10%

Frequency

50Hz

AC Nominal Output

Voltage

230V±10%

Current

32A

Power

7KW

Structure Design

Housing Material

Plastic PC940

Installation Method

Wall-mount/Floor-stand

Wall-mount Bracket

Not necessary

Charging Outlet

One charging gun (Type 2)

Cable Length

4 M

LED Indicator

Green/Yellow/Red color for different status

LCD Screen

No

Button

No

RFID Function

Yes

RFID Card

2pcs Mifare card

RCD

No

Communication

Charger v.s. Backend

WIFI

Communication Protocol

OCPP1.6(JASON)

Environmental Index

Operating Temperature

 - 30~ + 50℃

Working Humidity

5%~95% without condensation

Working Altitude

<2000M

Protection Grade

IP65

Application Site

Indoor/Outdoor

Cooling Method

Natural cooling

Security Protection

Multiple Protection

Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection

MTBF

100,000 hours

Safety Standard

IEC/EN 61851-1, IEC/EN 61851-21-2

Warranty

2 years

Package Information

Product Dimension

330*170*100MM

Package Dimension

480*340*165MM

Net Weight

3.6KG

Gross Weight

4.5KG

External Packing

Carton
