15W Wireless Charger Receiver

  • Item NO.:

    NY8605EVM
  • Product Orgin:

    China
  • Shipping Port:

    China
  • Color:

    Black
  • MOQ:

    100
  • Product Details
1.  Apply Scope
    This wireless charger receiver module specification shall be applied to Wireless charger 15W. Sensing distance of less than 10mm

2. Environment Protection Laws: RoHS

3.  According with Safety and EMC Criterion: WPC 1.2

4.  Safety and EMC Approval: CE / FCC

5.  Electrical Characteristic : Test Circuit


  If the test is to be made on a specified circuit, be sure to use the following circuit.
15w wireless charging receiver

6.  15w wireless charging receiver's Work Mode:Electromagnetic induction type (single coil)

7.  Output Power:15W

8.  Effective working distance: ≤10mm (Recommended working
    distance 3-5mm)
9.  Efficiency: up to 74% (5V output) up to 80% (9V output)

10. Working Frequency:110-205KHz

11. Output voltage: 5~14V (adjustable)

12. Work agreement:WPC1.2

13.  Intelligent detection: support

      over current protection: support

      over temperature protection: support

14. Overvoltage protection: support
      Rated output current: 1.7A
      Overcurrent protection value: 2.0A
      Over-temperature protection value inside the chip: 150℃


GET A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

Small and medium-sized power wireless power supply,  Big power wireless power supply,  Microwave power supply

wireless power chip
5W transmitting chip, single coil

Newyea provides you the suitable wireless charging solution !

Wallbox Chargers
11KW EV Wallbox charging station

Brought to you by the global experts in smart mobility, smart buildings and smart homes, the Newyea AC wallbox is built on the Newyea charging technology leadership for safe, smart and sustainable electrification and informed by our comprehensive expertise in e-mobility.

7kw
Compact quick and easy 7kW AC Home EV charging with Wallboxes by Newyea Gun suitble for all cars 7kW charge at home or rental apartments

This series EV fast chargers adopt European standard interface, integrating setting control, management, query, display, remote monitoring and other functions. The entire charging process is under intelligent control. With dual connector and option-al charging modes, the devices are ideal choices for fast charging at residential area, business premises, party and government organs, enterprises and institutions, car charging network support, etc.

120kw

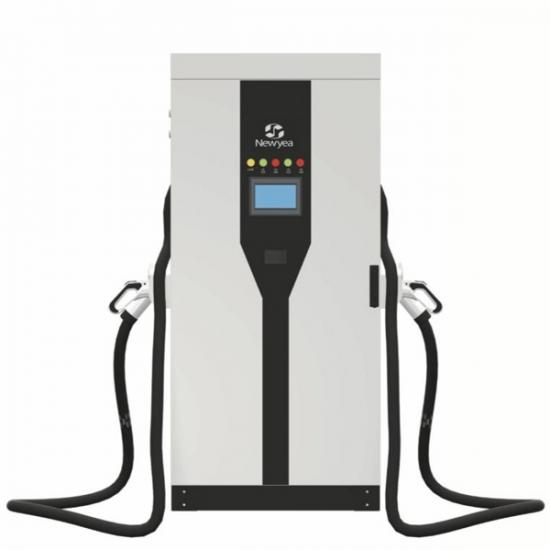

China facial recognition system high power charging pile DC 120kW charging 120kW CCS2 Electric Vehicle DC Fast Charger
