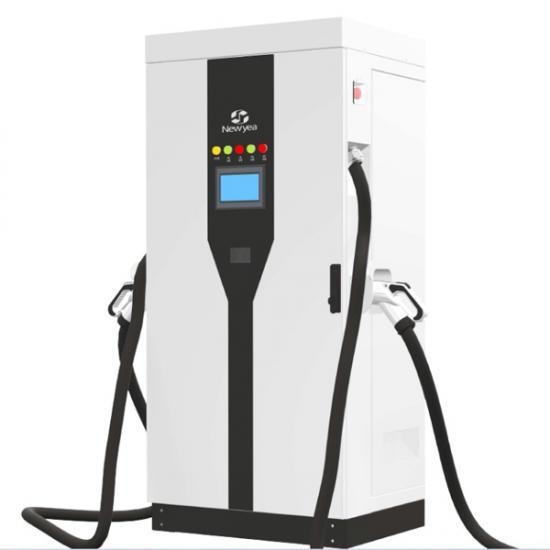

DC120KW Fast Charger Pile

Integrated DC Pile Series
  • Item NO.:

    NYEC-120K(D)C022-400
  • Product Orgin:

    China
  • Product Details

Product Feature


                                                                      Wired Charging Pile

                  Newyea Technology has a new generation of intellignet charging piles for the new energy ecology.

                  Base on the embedded intelligent charging pile independently researched and developed by LINUX.

                                 It is first to realize seamless access to the internet of things and smart cities.



Product Specification


Input Power

Input VoltageAC

3 phase+ neutral+ PE

Voltage

250-530 VAC

Frequency

50 Hz

Output Power

Output Voltage

150-750VDC

Max Current

200-280A

Normal Power

120KW

Structure Design

Housing Material

Galvanized Steel  (Option)

Front Panel

Tempered glass

Altitude

2000 Mtr.

Installed Methord

Wall mount / Floor-stand

Wall-mount Bracket

Not Necessary

Connection Standard

CCS Combo2 (IEC 61851-23)

Connector/Socket type

IEC62196-3 CCS Combo2 Mode 4

Vehicle Saftey Communication

CCS Combo 2- IEC 61851-23 over PLC

Number of output interface configuration moudles

21KW*3

Connector maximum output current

150A

RFID system

ISO/IEC14443A/B,ISO/IEC15693,Felica 1,NFC reader mode, LEGIC Prime & Advant

Payments

Smart Card, Server based Online Payments or equivalent

Network connection

GSM/CDMA/3G modem10/100 Base-T Ethernet

Interaction Display

Full-color ( 7 in 800*480TFT ) LCD display for driver interaction

communication

Charger v.s. Backend

WIFI

Communication Protocol

OCPP1.6(Json)

Environmental Index

Operating Temperature

-30to +50

Working Humidity

5%95% without condensation

Working Altitude

<2000M

Protection Grade

IP55

Application Site

Indoor/Outdoor

Cooling Method

Natural cooling

Security Protection

Multiple Protection

Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection

MTBF

100,000hours

Safety Standard

IEC 61851-1: 2017, IEC 62196-2: 2016
